Description

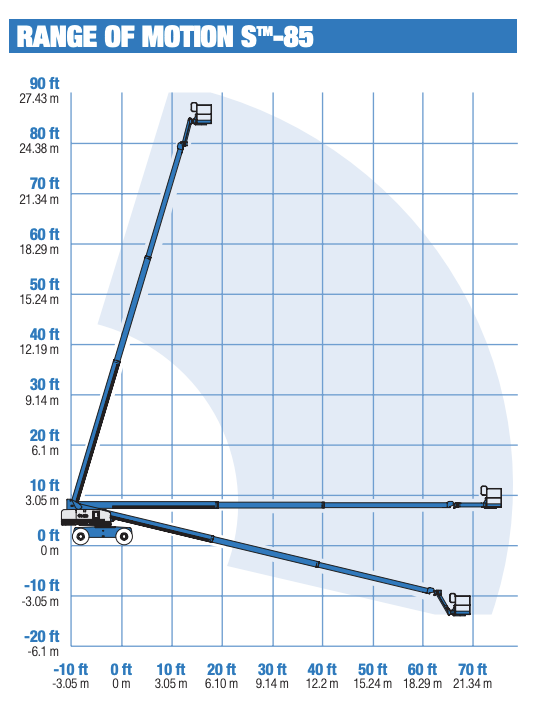

- Working Height: 27.7 m
- Horizontal Reach: 23.3 m
- Weight: 17,236kg
- Below Ground Reach: 2.89 m
- Platform Capacity: 227 kg

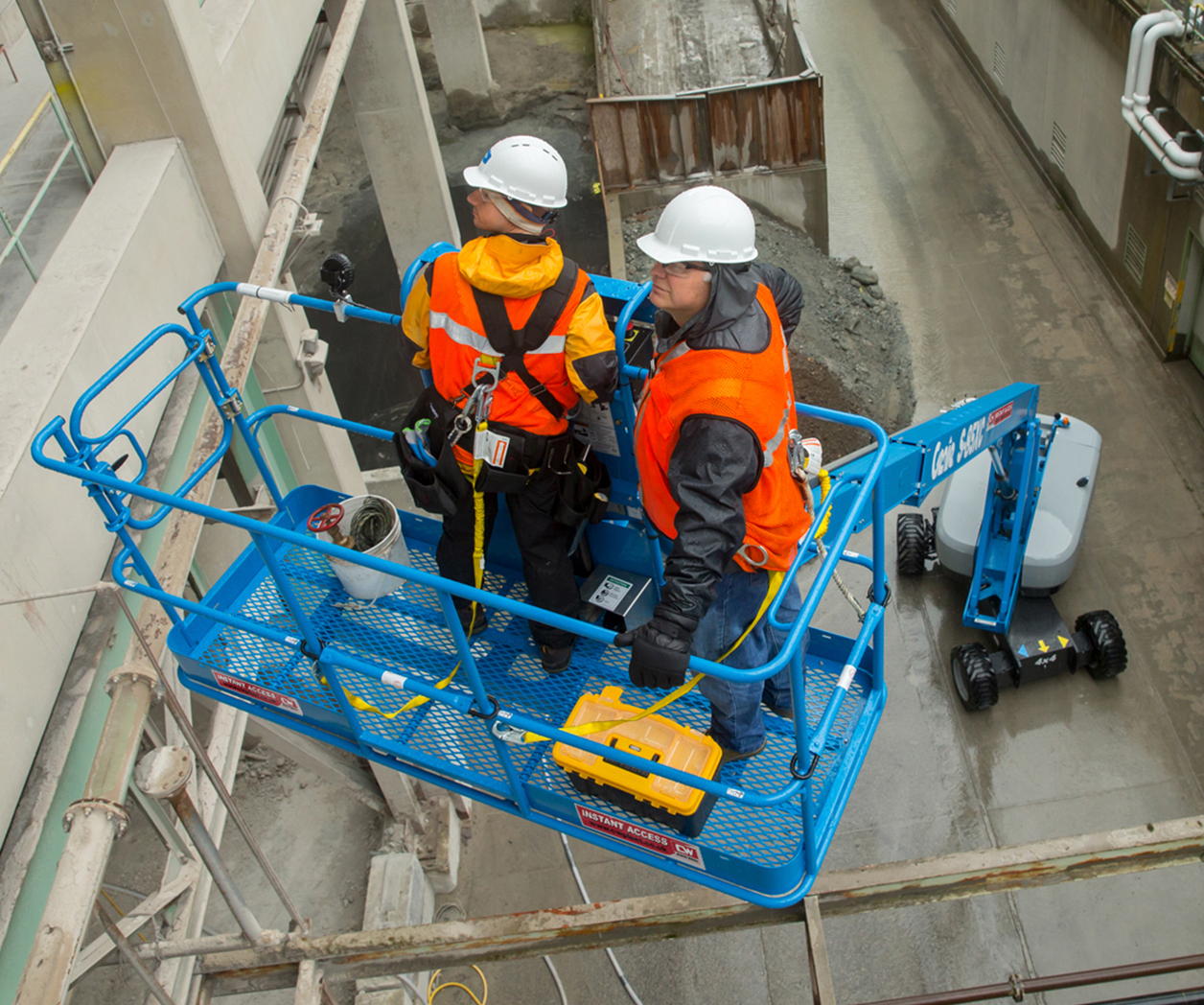

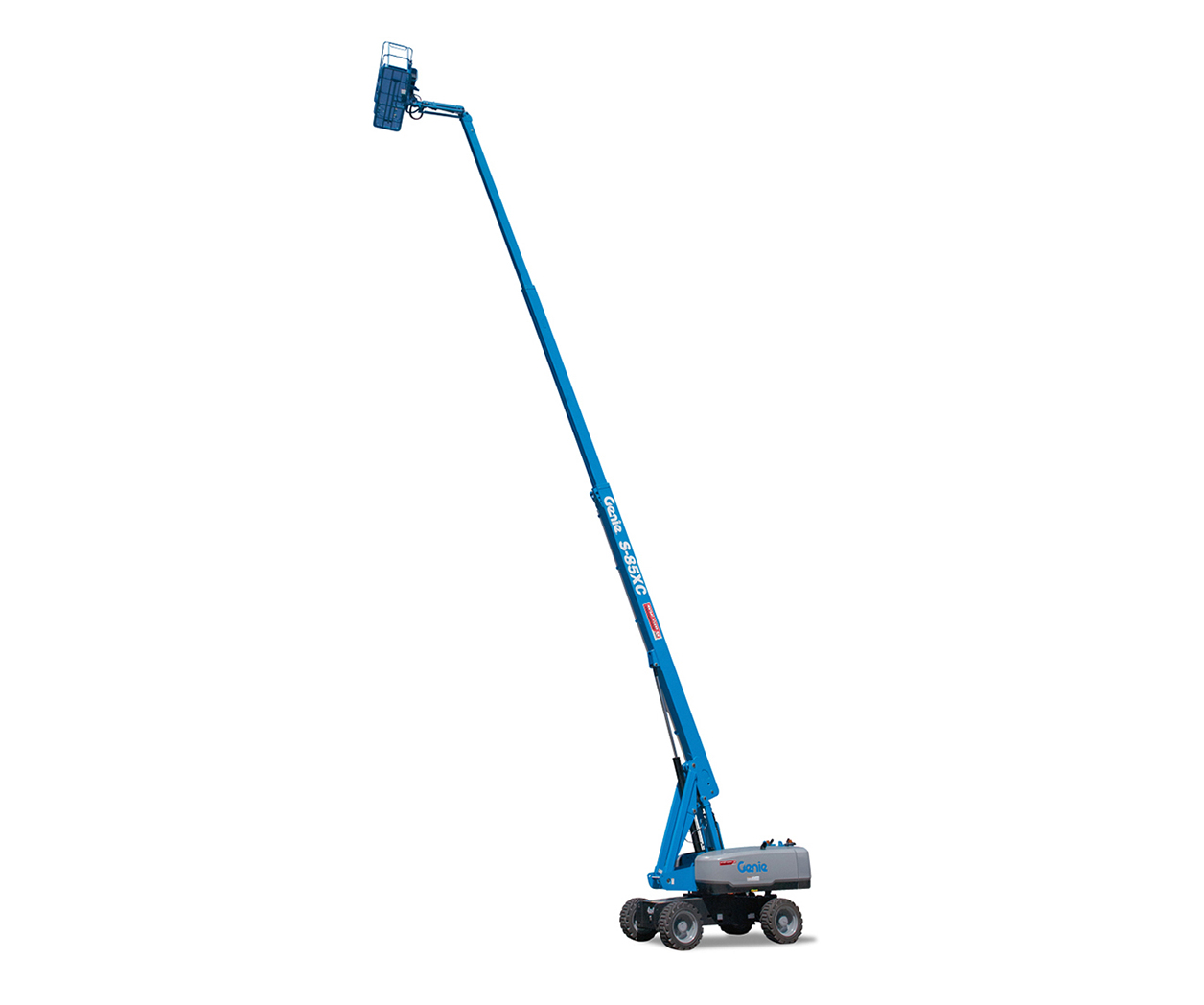

The Genie S-85 diesel telescopic boom lift offers greater horizontal outreach than any other type of aerial platform – 23.3 metres, making this machine the perfect choice for work in construction and industrial applications with limited access. It has 360˚continuous rotation turntable for quick positioning and smooth boom functions for finer control.
-
Health and Safety
Please refer to the operator manual or instruction guide for details
-
Genie – 7.8m Scissor Lift
Model: Genie GS-1932 E-Drive
Product Code: 020201
Working Height: 7.79 m
Safe Working Load: 227 kg
Machine Width: 0.81 m
-
Dingli – 5.6m Scissor Lift
Model: Dingli JCPT0607DCS
Product Code: 020217
Working Height: 5.6 m
Safe Working Load: 240 kg
-
Skyjack – 13.7m Scissor Lift
Model: Skyjack SJ4740
Product Code: 020213
Working Height: 13.69 m
Safe Working Load: 349 kg
-
Genie – Bi-Energy 14m Scissor Lift
Model: Genie GS4069 Bi-Energy
Product Code: 020207
Working Height: 14.12 m
Safe Working Load: 363 kg
Machine Width: 1.75 m
-
Genie – 11.5m Scissor Lift
Model: Genie GS-3232
Product Code: 020203
Working Height: 11.5 m
Safe Working Load: 227 kg
Machine Width: 0.81 m
-
Genie – 12m Boom Lift
Model: Genie Z33/18
Product Code: 20325
Working Height: 12 m
Horizontal Reach: 5.57 m
Up and Over Clearance: 4.28 m
-
Genie – 12m Scissor Lift
Model: Genie GS-3246
Product Code: 020205
Working Height: 11.75 m
Safe Working Load: 318 kg
Machine Width: 1.17 m
-
Genie – 10m Scissor Lift
Model: Genie GS-2632
Product Code: 020202
Working Height: 9.8 m
Safe Working Load: 227 kg
Machine Width: 0.81 m
-
Skyjack – 17m Scissor Lift
Model: Skyjack SJ9250RT
Product Code: 020209
Working Height: 17.07 m
Safe Working Load: 680 kg
-
Genie – 40.1m Boom Lift
Model: Genie SX125
Product Code: 020312
Working Height: 40.10 m
Horizontal Reach: 24.38 m
Below Ground Reach: 2.69 m
-
Skyjack – 12m Scissor Lift
Model: Skyjack SJ6832RT Diesel
Product Code: 020206
Working Height: 11.75 m
Safe Working Load: 454 kg
-
Airo – 19m Scissor Lift
Model: Airo XL19E
Product Code: 020211
Working Height: 19 m
Safe Working Load: 500 kg
-
Genie – RT 12m Scissor Lift
Model: Genie GS-3369 RT
Product Code: 020216
Working Height: 11.75 m
Safe Working Load: 454 kg
Machine Width: 1.75 m
-
Genie – 15.9m Boom Lift
Model: Genie Z45-XC
Product Code: 020326
Working Height: 15.87 m
Horizontal Reach: 7.55 m
Up and Over Clearance: 7.44 m
-
JLG – 24.5m Boom Lift
Model: JLG 800AJ
Product Code: 020309
Working Height: 24.46 m
Horizontal Reach: 15.74 m
Jib Articulation: 130 degrees
-
Genie 12.4m Boom Lift
Model: Genie TZ34/20
Product Code: 020321
Working Height: 12.36 m
Horizontal Reach: 5.59 m
Up and Over Clearance: 4.90 m
-
JLG – 40.3m Boom Lift
Model: JLG 1250AJP
Product Code: 020313
Working Height: 40.30 m
Horizontal Reach: 19.25 m
Up and Over Clearance: 18.44 m
-
JLG – 43.3m Boom Lift
Model: JLG 1350SJP Diesel Boom Lift
Product Code: 020315
Working Height: 43.30 m
Horizontal Reach: 24.38 m
Safe Working Load: 227 - 450 kg
-
Genie – 16m Boom Lift
Model: Genie Z45/25JRT
Product Code: 020303
Working Height: 15.9 m
Safe Working Load: 227 kg
Machine Width: 2.29 m
-
Genie – 20.9m Boom Lift
Model: Genie Z-62/40
Product Code: 020306
Working Height: 20.87 m
Horizontal Reach: 12.42 m
Up and Over Clearance: 7.8 m
