Description

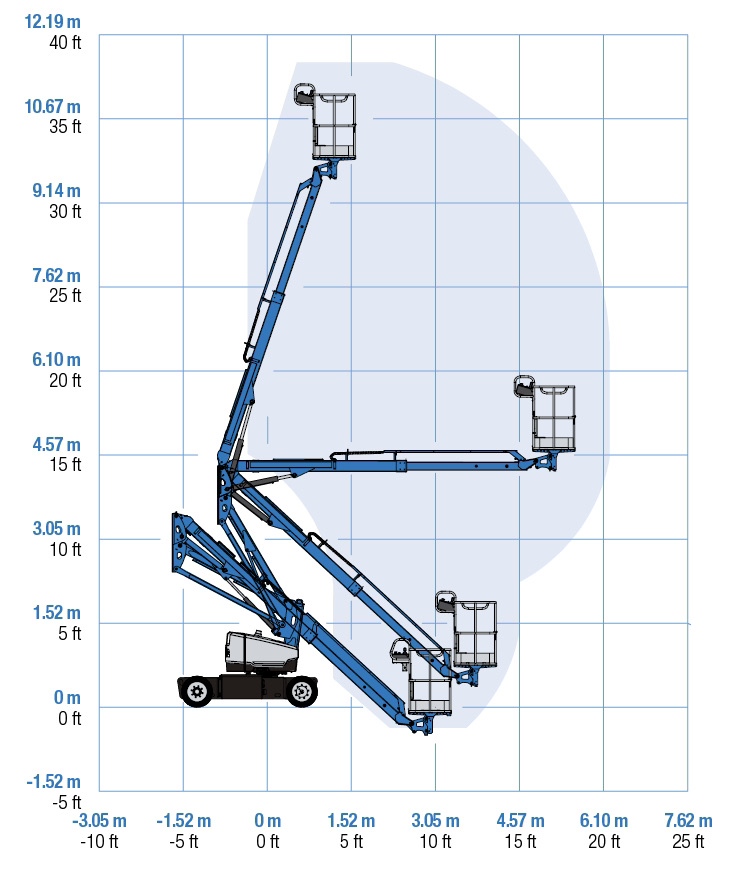

- Working Height: 12 m
- Horizontal Reach: 5.57 m
- Up and Over Clearance: 4.28 m
- Platform Capacity: 200 kg
- Copy Spec 5

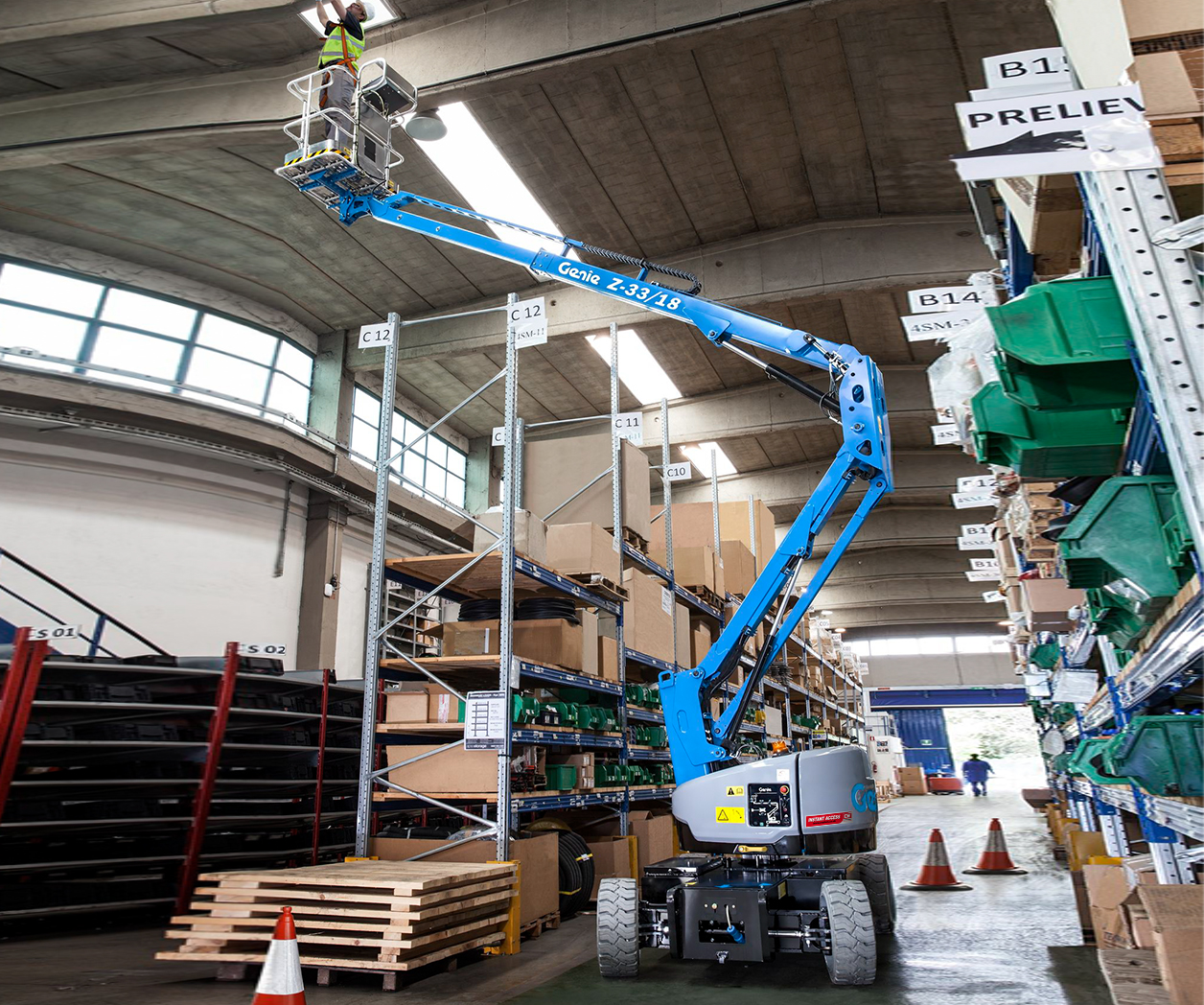

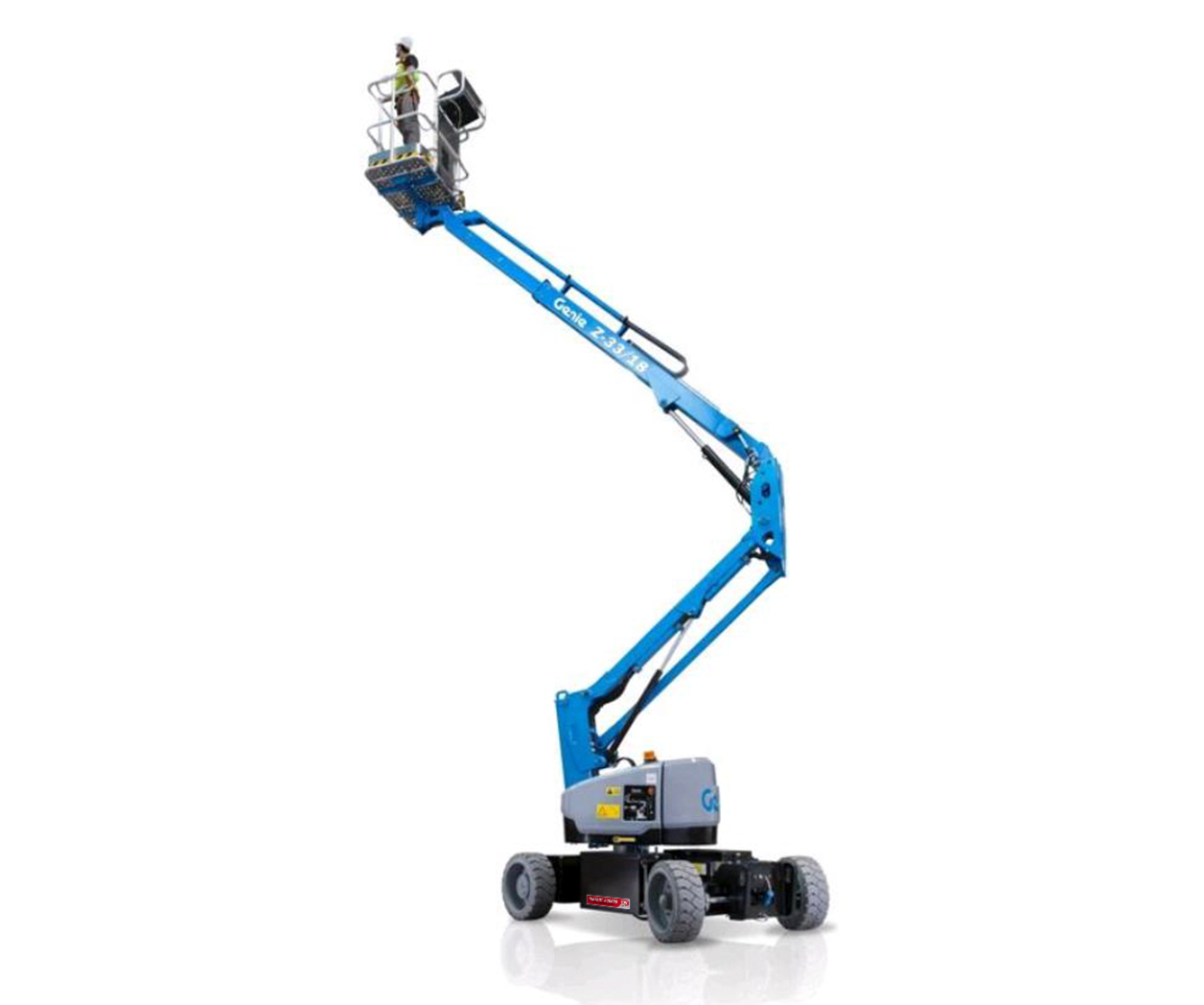

The Genie Z-33/18 articulating electric boom lift with 12m working height and zero emissions. It can drive through standard doorways, around obstacles and access overhead work from aisles even in areas where weight is limited. This boom lift is ideal for multiple indoor and outdoor jobs on sensitive grass or paved surfaces and flooring such as airports, shopping centres, theatres, etc.
-
Health and Safety
Please refer to the operator manual or instruction guide for details
-
Genie – 10.9m Boom Lift
Model: Genie Z-30/20 N RJ
Product Code: 020301
Working Height: 10.89 m
Horizontal Reach: 6.25 m
Up and Over Clearance: 3.86 m
-
Genie 12.4m Boom Lift
Model: Genie TZ34/20
Product Code: 020321
Working Height: 12.36 m
Horizontal Reach: 5.59 m
Up and Over Clearance: 4.90 m
-
Nifty – 20.8m Boom Lift
Model: Nifty HR21 Hybrid AWD
Product Code: 020319
Working Height: 20.8 m
Horizontal Reach: 12.8 m
Width: 2.27 m
-
Genie – 12m Scissor Lift
Model: Genie GS-3246
Product Code: 020205
Working Height: 11.75 m
Safe Working Load: 318 kg
Machine Width: 1.17 m
-
Genie – 7.9m Scissor Lift
Model: Genie GS-2032 E-Drive
Product Code: 020204
Working Height: 7.9 m
Safe Working Load: 363 kg
Machine Width: 0.81 m
-
Skyjack – 13.7m Scissor Lift
Model: Skyjack SJ4740
Product Code: 020213
Working Height: 13.69 m
Safe Working Load: 349 kg
-
Nifty – 17m Boom Lift
Model: Nifty HR17N
Product Code: 020327
Working Height: 17 m
Horizontal Reach: 9.7 m
Weight: 7,780kg
-
Genie – 43.2m Boom Lift
Model: Genie ZX135
Product Code: 020314
Working Height: 43.15 m
Horizontal Reach: 21.26 m
Below Ground Reach: 5.87 m
-
Genie – Bi-Energy 14m Scissor Lift
Model: Genie GS4069 Bi-Energy
Product Code: 020207
Working Height: 14.12 m
Safe Working Load: 363 kg
Machine Width: 1.75 m
-
Genie – 16m Electric Boom Lift
Model: Genie Z45/25JE Electric
Product Code: 020328
Working Height: 15.94 m
Horizontal Reach: 6.75 m
Up and Over Clearance: 7.24 m
-
Hinowa – 17m Boom Lift
Model: Hinowa Lightlift 17.75
Product Code: 020316
Working Height: 17.06 m
Horizontal Reach: 7.5 m
Platform Capacity: 230 kg
-
JLG – 43.3m Boom Lift
Model: JLG 1350SJP Diesel Boom Lift
Product Code: 020315
Working Height: 43.30 m
Horizontal Reach: 24.38 m
Safe Working Load: 227 - 450 kg
-
Genie – 40.1m Boom Lift
Model: Genie SX125
Product Code: 020312
Working Height: 40.10 m
Horizontal Reach: 24.38 m
Below Ground Reach: 2.69 m
-
Genie – BE 16m Boom Lift
Model: Genie Z-45/25J BE
Product Code: 020302
Working Height: 15.94 m
Horizontal Reach: 7.65 m
Up and Over Clearance: 7.24 m
-
Genie – 16m Boom Lift
Model: Genie Z45/25JRT
Product Code: 020303
Working Height: 15.9 m
Safe Working Load: 227 kg
Machine Width: 2.29 m
-
Genie – RT 12m Scissor Lift
Model: Genie GS-3369 RT
Product Code: 020216
Working Height: 11.75 m
Safe Working Load: 454 kg
Machine Width: 1.75 m
-
Genie – 18m Scissor Lift
Model: Genie GS-5390 RT
Product Code: 020210
Working Height: 17.95 m
Safe Working Load: 680 kg
Machine Width: 2.29 m
-
Genie – 20.9m Boom Lift
Model: Genie Z-62/40
Product Code: 020306
Working Height: 20.87 m
Horizontal Reach: 12.42 m
Up and Over Clearance: 7.8 m
-
-
Dingli – 5.6m Scissor Lift
Model: Dingli JCPT0607DCS
Product Code: 020217
Working Height: 5.6 m
Safe Working Load: 240 kg
