Description

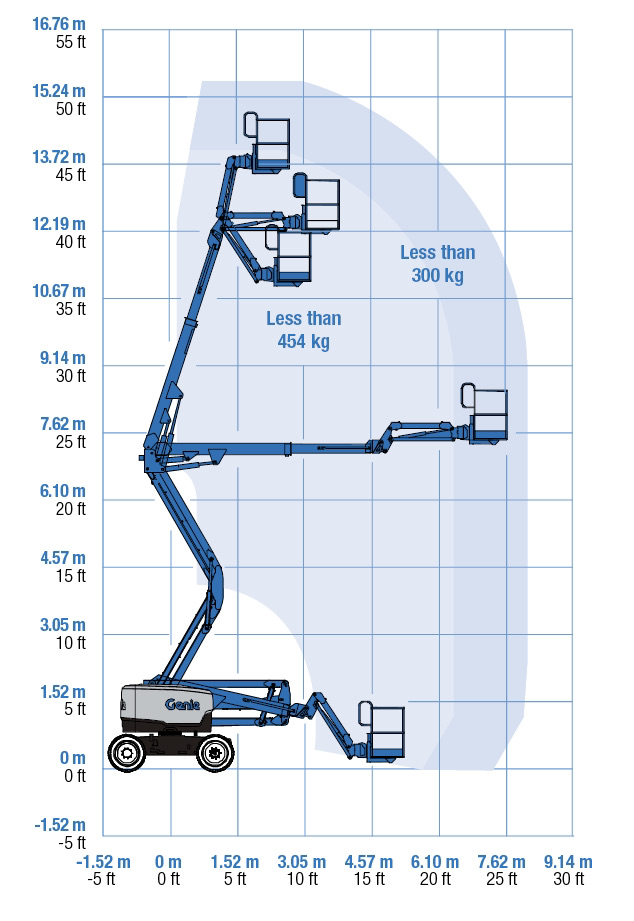

- Working Height: 15.87 m
- Horizontal Reach: 7.55 m
- Up and Over Clearance: 7.44 m
- Platform Capacity: 300kg Unrestricted, 454kg Restricted
- Copy Spec 5

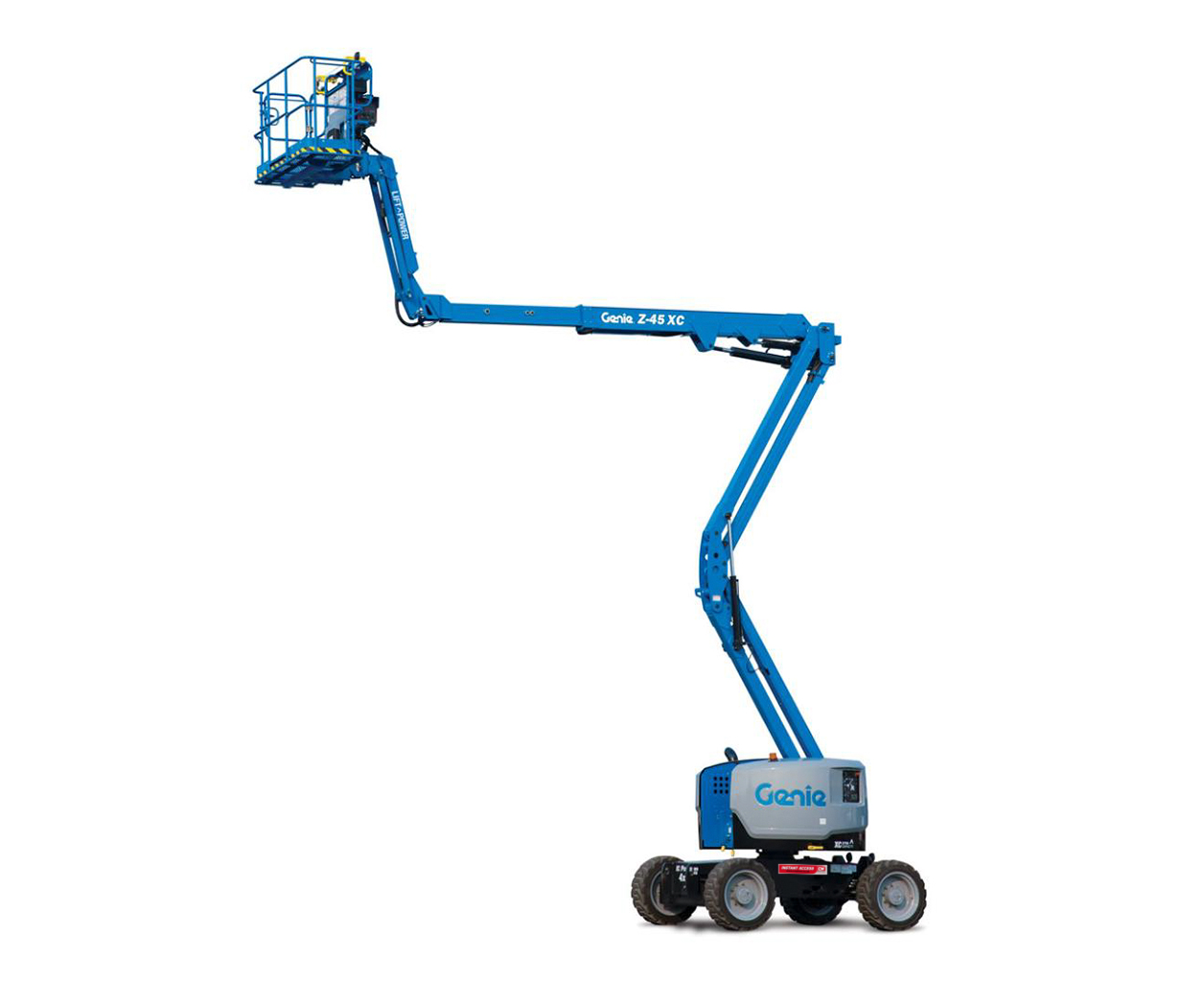

The Genie Z-45 XC articulating boom lift is the redesigned Xtra Capacity version of the popular rough-terrain Genie Z-45/25J RT diesel powered articulating boom. It can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to its dual lift capacity. It features 4WD and 45% gradeability for superior terrain ability.
-
Health and Safety
Please refer to the operator manual or instruction guide for details
-
Genie – BE 16m Boom Lift
Model: Genie Z-45/25J BE
Product Code: 020302
Working Height: 15.94 m
Horizontal Reach: 7.65 m
Up and Over Clearance: 7.24 m
-
JLG – 40.3m Boom Lift
Model: JLG 1250AJP
Product Code: 020313
Working Height: 40.30 m
Horizontal Reach: 19.25 m
Up and Over Clearance: 18.44 m
-
Skyjack – 17m Scissor Lift
Model: Skyjack SJ9250RT
Product Code: 020209
Working Height: 17.07 m
Safe Working Load: 680 kg
-
Genie – 10.9m Boom Lift
Model: Genie Z-30/20 N RJ
Product Code: 020301
Working Height: 10.89 m
Horizontal Reach: 6.25 m
Up and Over Clearance: 3.86 m
-
JLG – 15.8m Boom Lift
Model: JLG 450AJ
Product Code: 20322
Working Height: 15.77 m
Horizontal Reach: 7.62 m
Up and Over Clearance: 6.09 m
-
Genie – RT 12m Scissor Lift
Model: Genie GS-3369 RT
Product Code: 020216
Working Height: 11.75 m
Safe Working Load: 454 kg
Machine Width: 1.75 m
-
Genie – Electric 14m Scissor Lift
Model: Genie GS-4069DC E-Drive
Product Code: 020214
Working Height: 14.12 m
Safe Working Load: 363 kg
Machine Width: 1.75 m
-
Genie – 16m Electric Boom Lift
Model: Genie Z45/25JE Electric
Product Code: 020328
Working Height: 15.94 m
Horizontal Reach: 6.75 m
Up and Over Clearance: 7.24 m
-
Genie – 15m Scissor Lift
Model: Genie GS4290 RT
Product Code: 020208
Working Height: 14.74 m
Safe Working Load: 680 kg
-
Genie – 10m Scissor Lift
Model: Genie GS-2632
Product Code: 020202
Working Height: 9.8 m
Safe Working Load: 227 kg
Machine Width: 0.81 m
-
-
JLG – 43.3m Boom Lift
Model: JLG 1350SJP Diesel Boom Lift
Product Code: 020315
Working Height: 43.30 m
Horizontal Reach: 24.38 m
Safe Working Load: 227 - 450 kg
-
Genie – 20.2m Boom Lift
Model: Genie Z60/37FE
Product Code: 020307
Working Height: 20.16 m
Horizontal Reach: 11.15 m
Up and Over Clearance: 7.39 m
-
Nifty – 20.8m Boom Lift
Model: Nifty HR21 Hybrid AWD
Product Code: 020319
Working Height: 20.8 m
Horizontal Reach: 12.8 m
Width: 2.27 m
-
Genie – 7.9m Scissor Lift
Model: Genie GS-2032 E-Drive
Product Code: 020204
Working Height: 7.9 m
Safe Working Load: 363 kg
Machine Width: 0.81 m
-
JLG – 22m Boom Lift
Model: JLG 660SJ Diesel
Product Code: 020323
Working Height: 22.02 m
Horizontal Reach: 17.40 m
Platform Height: 20.02 m
-
Genie – 40.1m Boom Lift
Model: Genie SX125
Product Code: 020312
Working Height: 40.10 m
Horizontal Reach: 24.38 m
Below Ground Reach: 2.69 m
-
Nifty – 17m Boom Lift
Model: Nifty HR17N
Product Code: 020327
Working Height: 17 m
Horizontal Reach: 9.7 m
Weight: 7,780kg
-
Airo – 19m Scissor Lift
Model: Airo XL19E
Product Code: 020211
Working Height: 19 m
Safe Working Load: 500 kg
-
Genie – 43.2m Boom Lift
Model: Genie ZX135
Product Code: 020314
Working Height: 43.15 m
Horizontal Reach: 21.26 m
Below Ground Reach: 5.87 m
